VP/HK, PS/E, PG/H
Gauging and Sampling Device with accessories
Features
Function and Description
Level Gauging and Sampling Systems for Aboveground Tanks
The PROTEGO® gauging and sampling assembly consists of the manual Gauging and Sampling Device PROTEGO® VP/HK (1), the Gauging Nozzle PROTEGO® PS/E (2), the Gauging Pipe PROTEGO® PR/0, the Gauge Plate PROTEGO® PT/S and the Sampling Pot PG/H (3). This assembly serves for gauging (determination of the liquid level) and sampling in horizontal or vertical aboveground tanks which store non-flammable or – if equipped appropriately – flammable liquids, this device may also be used for storage tanks approved by customs.
Manual Level Gauging and Sampling Device for Tanks
The Portable Gauging and Sampling Device PROTEGO® VP/HK is attached by aa clamp to the fixing rod of the gauging nozzle. The millimeter-scale measuring tape - black anodized - is calibrated by customs. The Gauging Pipe PROTEGO® PR/0 is made of an insert-pipe with holes. the slip-on fllange is included in the shipment and has to be welded on during on-site assembly.
Construction and Capacity of the Sampling Container

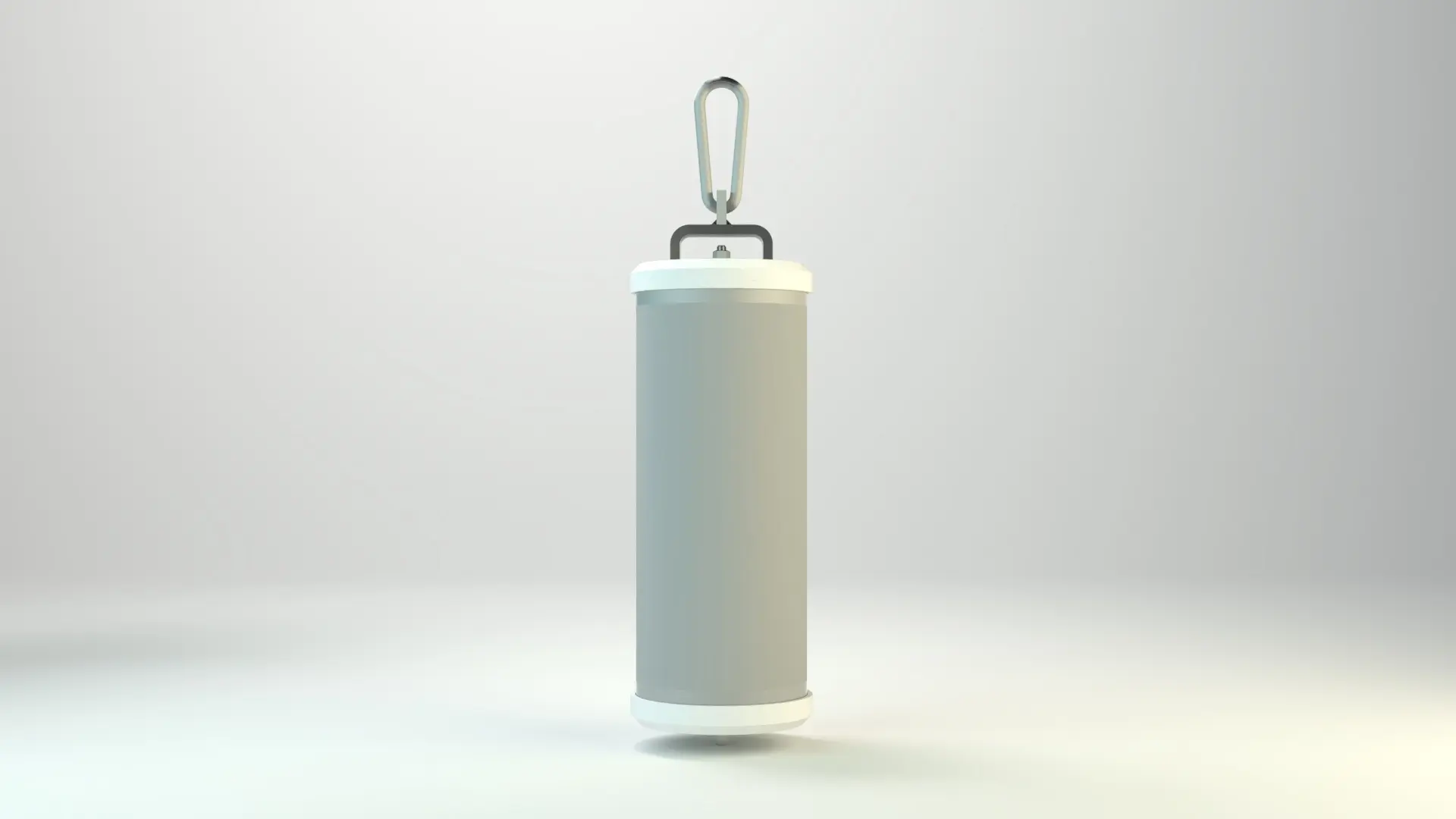

The gauging nozzle with hinged cover and clip-lock PROTEGO® PS/E is attached to the counter-flange of the gauging and sampling pipe. The locking nozzle has the Fixing rod attached for connecting the gauging and sampling device PROTEGO® VP/HK. The sampling constructed from stainless steel with conductive plastic caps pot PROTEGO® PG/H consists of housing with metallic sealing valve discs and snap-hook. Specify the required capacity (1l or 2l / 0.22 gal (UK) or 0.44 gal (UK))

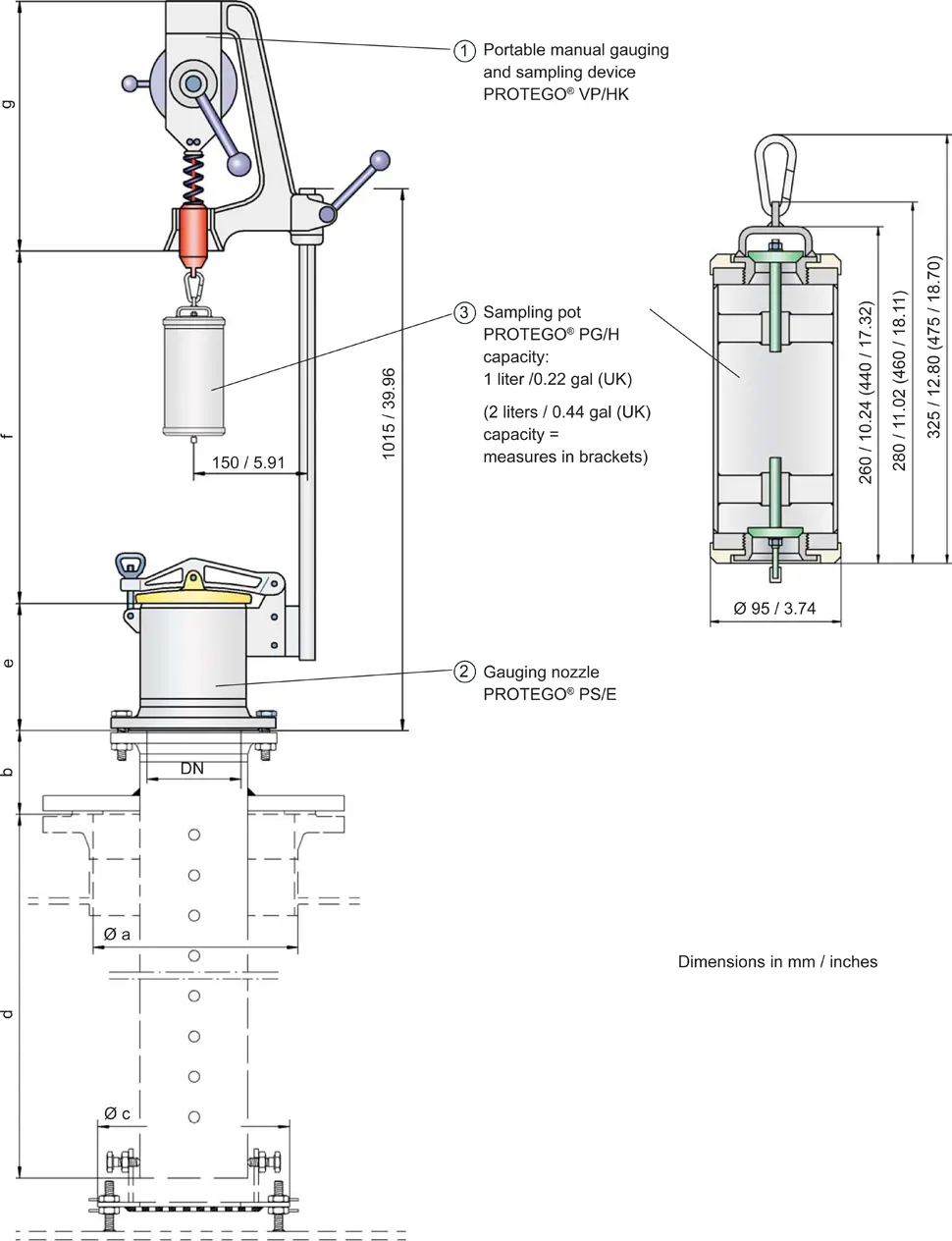

Dimensions
| DN | a | b | c | e | f | g |
| 100 / 4" | 150 / 5.91 | 150 / 5.91 | 305 / 12.01 | 300 / 11.81 | 640 / 25.20 | 280 / 11.02 |
| 150 / 6" | 200 / 7.87 | 150 / 5.91 | 375 / 14.76 | 300 / 11.81 | 640 / 25.20 | 280 / 102 |
Dimensions in mm / inches
Measure d must be given with the order
Material
| Measuring tape (VP/HK) | Stainless Steel |
| Lowering weight (VP/HK) | Stainless Steel |
| Crank handle (VP/HK) | Aluminium |
| Frame (VP/HK) | Aluminium |
| Gauging nozzle PS / E | Steel or Stainless Steel |
| Gauging pipe PR / 0 | Steel or Stainless Steel |
| Gauging plate PT / S | Steel or Stainless Steel |
| Sampling pot PG / H | Stainless Steel |
